Line Material Industries (McGraw-Edison) Ovalite (R)
Westinghouse OV-35

     Back to streetlight main page
     Go to index of other topics

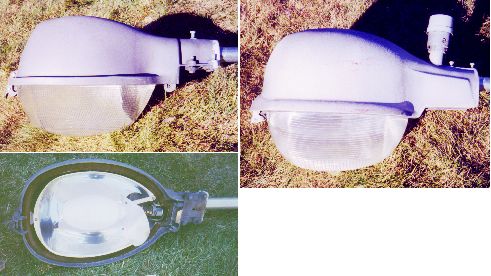

Line Material Ovalite(R)  late style (left).

For highway and urban applications, accommodates up to 400 watt mercury lamps.

Looking back over the years, I believe this was the third most common mercury luminaire before the 1960's styles were introduced, behind General Electric's Form 109 and Westinghouse's OV-20. I have seen them practically everywhere. This is my favorite, if a collector could have one. I recognized these when I was 4 years old. Has cast aluminum body and stamped aluminum reflector inside. This one (maybe not all) has a shoehorn like reflector behind the lamp (visible through the glass and also seen in lower left photo) to reduce light shining in bedroom windows.

Weight: 23 lb. complete.
Length: 24-1/2" overall.
I have not found any part numbers or catalog numbers inside.
Cast aluminum ring with split held together by bolt, and with retaining grooves to hold glassware.
I have seen at least two variations for the glass refractor, perhaps there were several to provide a choice of light distribution patterns.

There was also a model for lamps up to 250 watts. I haven't seen one up close but I would suppose it was physically smaller.

There was also an early style Ovalite, with a cap somewhat like the top half of this unit but much smaller, and a globe assembly with a somewhat hemispherical reflector and hemispherical glass that fit on below, similar to the GE Form 109.

Westinghouse OV-35 Style (right)

I first saw these in a gas station, two of them mounted symmetrically above the gas pump island. Back then I thought, "Was [the Ovalite*] this large or did it look this large only because it was closer to the ground?". This specimen has a photocontrol atop its neck, most did not. Accommodates 1000 watt mercury lamp. Has cast aluminum body and stamped reflector inside. I don't remember seeing these on the street. Apparently 1000 watts of mercury was seldom called for in a single streetlight. As late as 2000 I have seen a few of these in parking lots.

Weight: 30 lb.
Dimensions: 28" long overall, 16-5/8" wide.
Cast aluminum ring with split held together by bolt, and with retaining grooves to hold glassware.
Has Westinghouse emblems but I did not find any Westinghouse part numbers inside.

* I did not know the names Line Material Industries or Ovalite until 1997 when I saw Marvin Suggs' web page.
